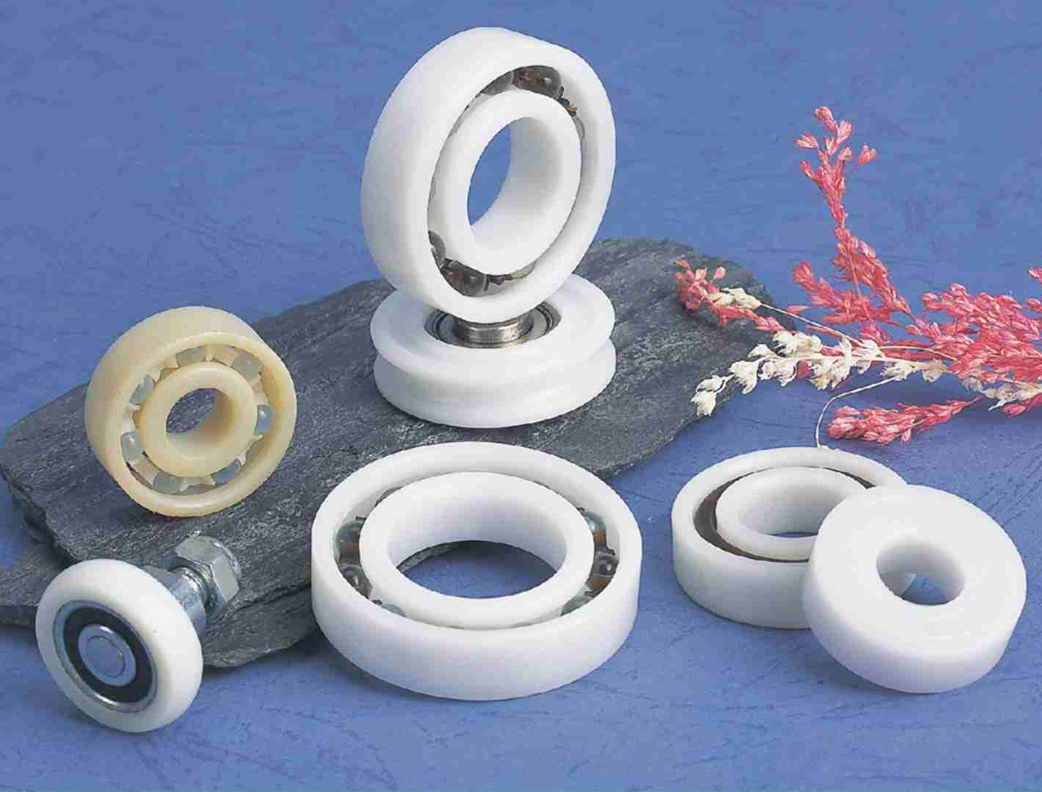

Endure high temperature
plastic bearings use the changed capability PTFE
and PEEK material .they can keep the excellent wearable
and resist caustery ,intension is also improved,
their enduring temperature can reach more than 250°C-350°C.
|
|
| |
| |
Part
Number |
d(mm)
+0.05
-0 |
D(mm)
+0
-0,05 |
W(mm)
+0
-0.12 |
Static
load (N) |
Dynamic (N) |
Max Speed rpm |
Gross
Weight
(KG) |
| Ph6000 |
10 |
26 |
8 |
9.0 |
13.0 |
1900 |
0.002 |
| Ph6001 |
12 |
28 |
8 |
11.0 |
16.0 |
1750 |
0.003 |
| Ph6002 |
15 |
32 |
9 |
13.0 |
19.0 |
1550 |
0.005 |
| Ph6003 |
17 |
35 |
10 |
17.0 |
24.0 |
1400 |
0.008 |
| Ph
6004 |
20 |
42 |
12 |
20.0 |
30.0 |
1200 |
0.012 |
| Ph
6005 |
25 |
47 |
12 |
24.0 |
36.0 |
1050 |
0.037 |
| Ph
6006 |
30 |
55 |
13 |
28.0 |
42.0 |
900 |
0.024 |
| Ph
6007 |
35 |
62 |
14 |
32.0 |
48.0 |
800 |
0.031 |
| Ph
6008 |
40 |
68 |
15 |
35.0 |
52.0 |
750 |
0.035 |
| Ph
6009 |
45 |
75 |
16 |
38.0 |
56.0 |
650 |
0.053 |
| Ph
6010 |
50 |
80 |
16 |
39.0 |
58.0 |
600 |
0.062 |
| Ph
6011 |
55 |
90 |
18 |
40.0 |
60.0 |
550 |
0.084 |
| Ph
6012 |
60 |
95 |
18 |
42.0 |
64.0 |
500 |
0.091 |
| Ph
6200 |
10 |
30 |
9 |
13.0 |
17.0 |
1650 |
0.006 |
| Ph
6201 |
12 |
32 |
10 |
15.0 |
22.0 |
1550 |
0.007 |
| Ph
6202 |
15 |
35 |
11 |
17.0 |
25.0 |
1400 |
0.009 |
| Ph
6203 |
17 |
40 |
12 |
22.0 |
32.0 |
1250 |
0.013 |
| Ph
6204 |
20 |
47 |
14 |
27.0 |
42.0 |
1050 |
0.022 |
| Ph
6205 |
25 |
52 |
15 |
32.0 |
48.0 |
950 |
0.026 |
| Ph
6206 |
30 |
62 |
16 |
36.0 |
55.0 |
800 |
0.044 |
| Ph
6207 |
35 |
72 |
17 |
41.0 |
62.0 |
700 |
0.060 |
| Ph
6208 |
40 |
80 |
18 |
44.0 |
66.0 |
625 |
0.075 |
| Ph
6209 |
45 |
85 |
19 |
47.0 |
72.0 |
580 |
0.093 |
| Ph
6210 |
50 |
90 |
20 |
54.0 |
77.0 |
550 |
0.11 |
| Ph6211 |
55 |
100 |
21 |
60.0 |
80.0 |
500 |
0.13 |
| Ph6212 |
60 |
110 |
22 |
63.0 |
88.0 |
450 |
0.17 |
| Ph
6300 |
10 |
35 |
11 |
19.0 |
28.0 |
1400 |
0.010 |
| Ph
6301 |
12 |
37 |
12 |
21.0 |
31.0 |
1300 |
0.012 |
| Ph
6302 |
15 |
42 |
13 |
26.0 |
37.0 |
1200 |
0.017 |
| Ph
6303 |
17 |
47 |
14 |
30.0 |
45.0 |
1050 |
0.024 |
| Ph
6304 |
20 |
52 |
15 |
35.0 |
53.0 |
950 |
0.031 |
| Ph
6305 |
25 |
62 |
17 |
40.0 |
60.0 |
725 |
0.048 |
| Ph
6306 |
30 |
72 |
19 |
46.0 |
70.0 |
675 |
0.077 |
| Ph
6307 |
35 |
80 |
21 |
49.0 |
75.0 |
600 |
0.092 |
| Ph
6308 |
40 |
90 |
23 |
51.0 |
82.0 |
550 |
0.12 |
| Ph
6309 |
45 |
100 |
25 |
54.0 |
90.0 |
500 |
0.18 |
| Ph
6310 |
50 |
110 |
27 |
58.0 |
97.0 |
400 |
0.24 |
|
| |
| |
|
|
|
|
